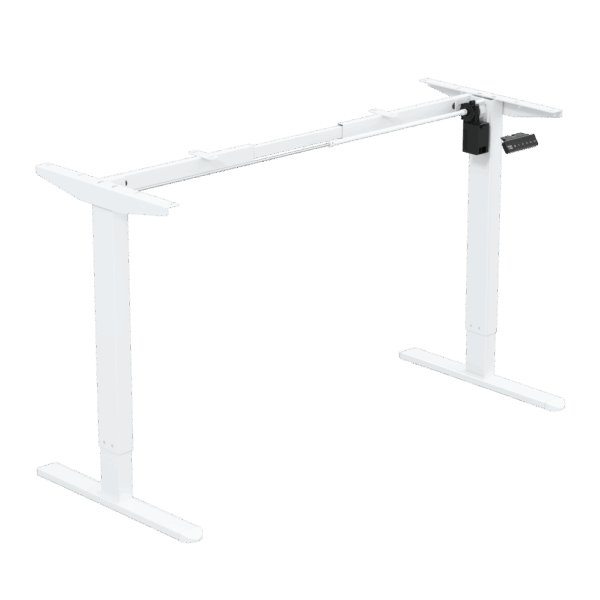

Dual Motor 3-Stage Sit-Stand Desk Frame With Cable Managment
5 years warranty
Timotion brand lifting system
Description
Desk Frame Color: Black/White, Custom Colors
Beam Extension Range: 1025-1800 mm
Bracket Length: 575 mm
Feet Length: 680*80*30 mm
With extension cable managment
Leg Tube Specifications:
Rectangle 80*50/75*45/70*40/1.5 mm(3 Stage Leg)
Rectangle 80*50/75*45/1.5 mm(2 Stage Leg)
Round Ø70*Ø63*Ø57 /1.5 mm(3 Stage Leg)
Round Ø70*Ø63 /1.5 mm(2 Stage Leg)
Height Adjustable Range:
630 -1280 mm ( 3 Stage Leg )
750-1230 mm ( 2 Stage Leg )
Input voltage: 100-240 V
Plug specification: National standard optional
Load Capacity
120 KG ( Timotion Motor )
Lifting Speed
40 mm/s ( 3 Stage Leg )
32 mm/s ( 2 Stage Leg )
Running Noise: <50 dB
Side thrust displacement: <10 mm
Warranty : 5 years
Package Size and Weight
