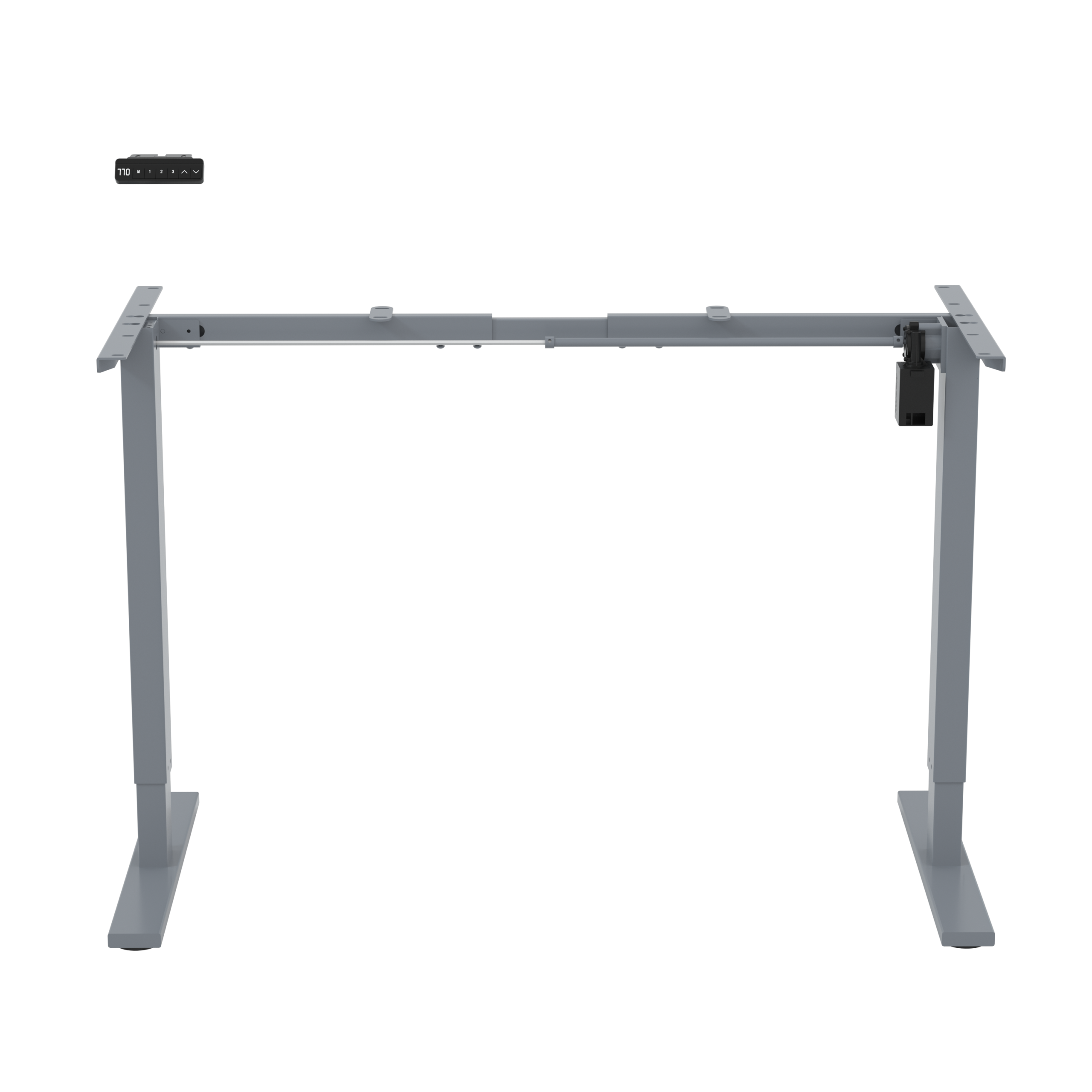

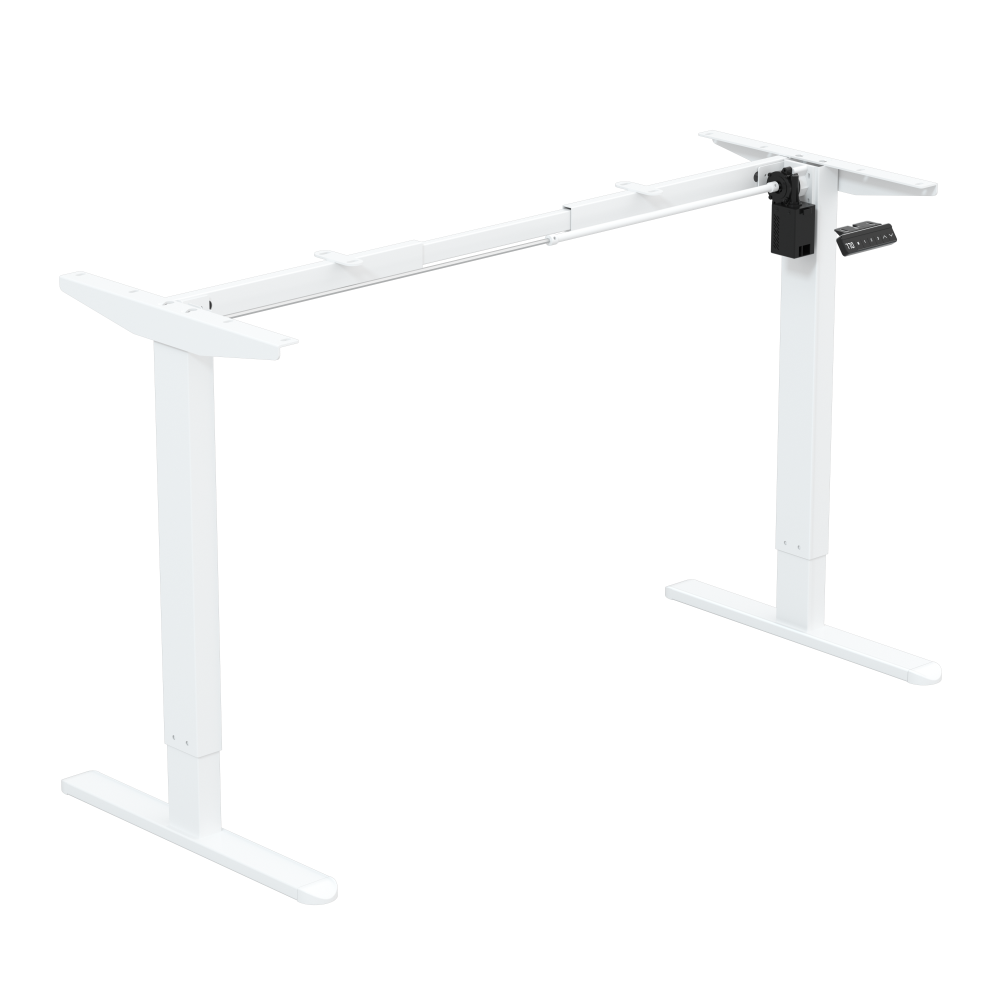

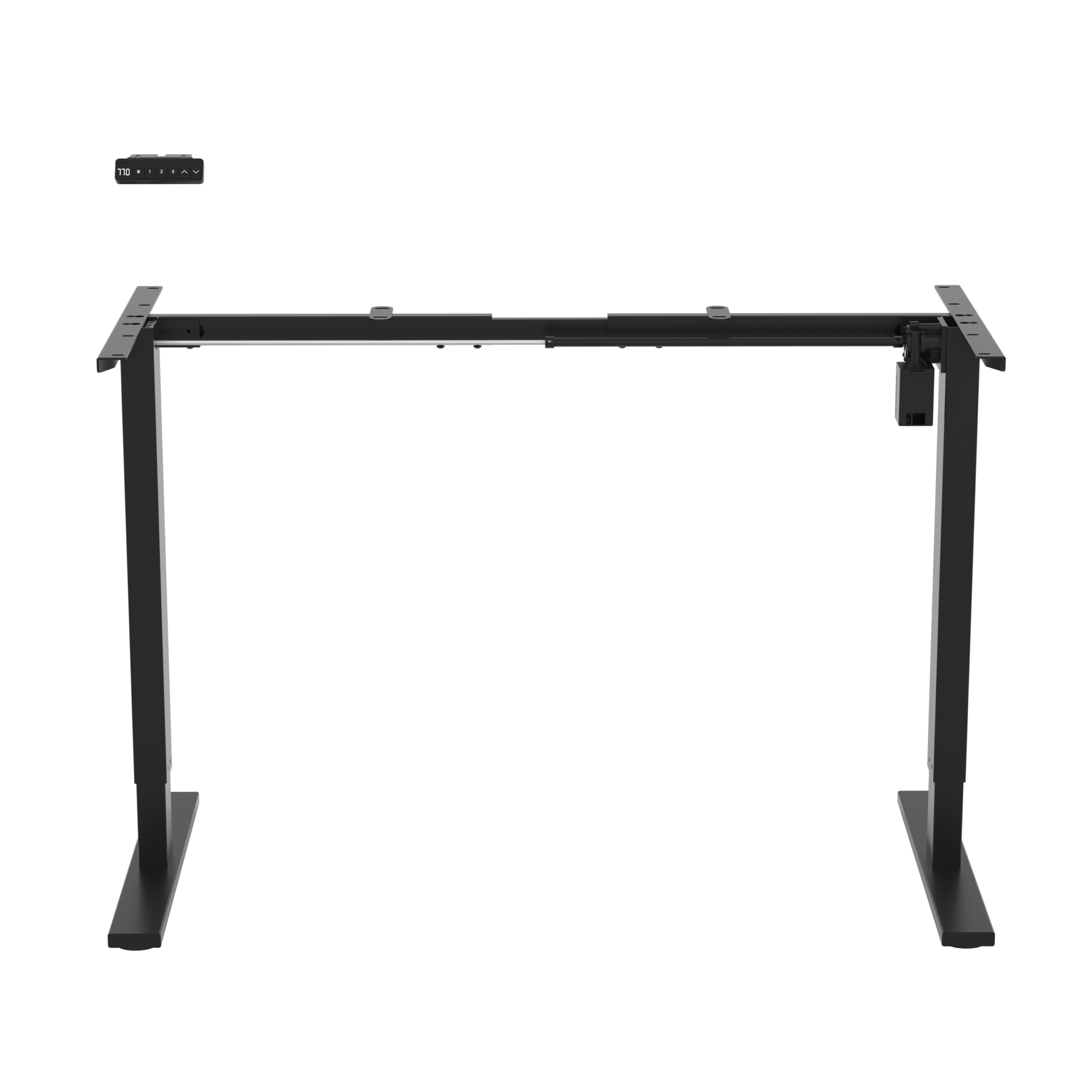

Brushless Single Motor Height Adjustable Desk Frame
Fast and easy assembled structure standing desk with 3 memory handset.
Longer lifespan: The heat of motor is low, the temperature rise during operation is less than 50℃ under the 30% duty cycle.
More energy-efficient: Motor efficiency up to 78%, low power consumption. The efficiency of brushed motor only reach about 50%
Smoother lifting: High control accuracy, load speed fluctuation less than 5%, smoother start and stop
More load capacity: High speed, strong output power, up to 110W. And the power of the brushed motor is about 80W
Strong anti-interference ability: Better EMC and EMI characteristics, Conduction margin is more than 8dB
Space saving: only 70% of that of a brushed motor, and the appearance is more concise
Description
Input: 110-240V
Noise Level: 50db
Lifting speed: 18mm/s
Loading: 70kg (based on 15000 times up and down testing)
Height Range: 700-1200mm
Handset: 3 memory with up and down keys
Frame size: 870-1200mm (Beam 1.5mm)
Bracket: 420mm, 2mm thickness
Foot: 580mm, thickness: 3mm combine with 2mm
Leg size: 65*45/60*40*1.2mm (1.5mm thickness)
With three-segment memory function button
With sedentary reminder With Child safe key funciton With sensitive anti-collision.
Warranty: 3 Years for desk frame and electronic parts
Available Color: Black, White, Grey
| G.W. (kg) | N.W.（kg） | L | W | H | CBM |
| 13.15 | 11.8 | 76 | 31 | 19.5 | 0.05 |
